In the morning, first verification of our week 4 participants revealed severe weather reports from N Italy and parts of Austria. Lightnings derived from GLD360 network overlapped quite well with >50% probability for lightning threat (thick yellow line).

In the afternoon, our expert John Hart from SPC gave very interesting presentation on the topic “Overview: Severe Weather Forecasting”. Basing on his 25 years of experience in forecasting severe weather, it was a great opportunity to listen his talk. We had numerous questions from our participants and long discussion.

John Hart having discussion with Helge Tuschy and Alois Holzer

Later on, participants began to analyze weather setup for Wednesday and finded out that severe weather outbreak is possible tomorrow in central Italy and Balkan Penninsula. Mateusz Barczyk and Piotr Zurawski from Poland presented results of their teams day1 and day2 forecasts.

Piotr Zurawski presenting day2 forecast (left), and Mateusz Barczyk presenting day1 forecast (right).

… and this is how their forecast for tomorrow look like:

A level 1 and level 2 was issued for northern Italy and northern Balcans for heavy precipitations and to lesser extent for large hail and severe wind gusts.

A level 1 and level 2 was issued for central Italy and southern Balcans for large hail and severe wind gusts.

SYNOPSIS:

Strong SW flow at 500 hPa. Hot and dry air from Sahara is advected over the southern part of our domain. Frontal boundary stretches from western Mediterranean across northern Italy into northern Balkan states. Rich low-level moisture is present near this frontal boundary and enables mod CAPE (500 to 1500 J/kg) over a wide area. Deep-layer shear will be very strong (25 to 40 m/s) in the belt from Tunisia across much of Italy and the Balkans. Large scale lift is available ahead of a short wave trough which moves in from the west.

Widespread storms are expected to form in the noon and afternoon hours over level 2 area and to move eastward. Overnight the arriving trough can also initiate scattered storms over central Mediterrean region, where a strong capping inversion is still in place during daytime.

Storms can organize very well, including supercells and large clusters. Large hail and severe wind gusts are the dominant risk over the southern half of level 1 and 2 area, where more discrete stroms are expected. Due to high low level shear (up to 15 m/s) also a few tornados may occur, especially in the Balkans area.

The highest coverage of storm is predicted further North, where heavy precipitation is the primary risk.

_______________________

Our readers: any comments? 🙂

Today we started new week with new participants from Lithuania, Poland, Germany, Austria, Croatia, USA and Netherlands. This week ESSL team is supported by Pieter Groenemeijer, Alois Holzer, Thilo Kuhne, Mateusz Taszarek, Georg Pistotnik, Helge Tuschy and Magdalena Pichler. John Hart from Storm Prediction Center (USA) is our expert guest.

Monday’s presentation about flash flooding threat was conducted by ESTOFEX forecaster Helge Tuschy. Helge shown that different convective setups can be responsible for excessive precipitation and forecasters should be able to apply various approaches in their forecasting.

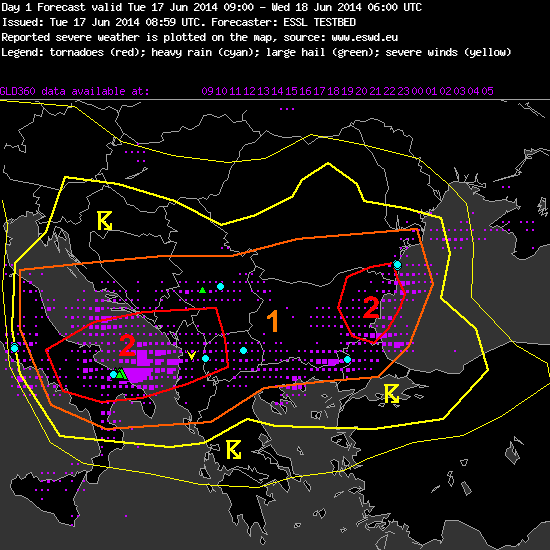

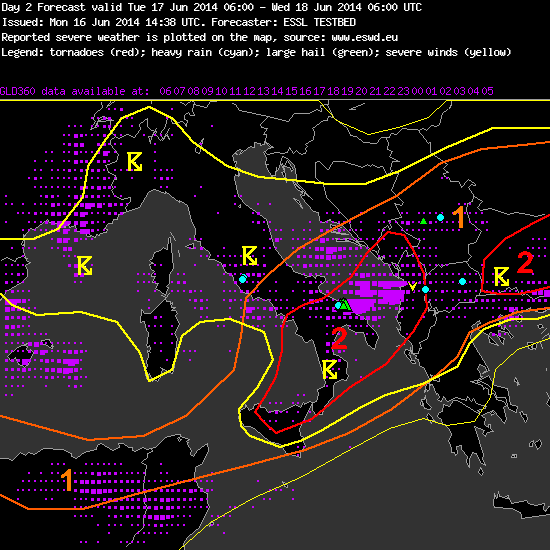

This week severe weather is likely to occur mainly in Italy and Balkan Peninsula. As usually, we began our day with Pieter’s verification of previous day1 and day2 forecasts. Quick look on them below:

In the afternoon, forecasts and nowcasts for Balkan Peninsula were presented by Meda Daniela Andrei from RNMA (Romania):

It is also worth to say few thoughts about overshooting top detection algorithm which is used by participants during ESSL Testbed. When thunderstorm’s updraft reaches equilibrium level (EL), usually its spreads horizontally and creates characteristic anvil. However, if the updraft is sufficiently strong it penetrates the EL and forms a convex feature so called overshooting top (OT). Since the satellite is able to measure cloud tops temperature, it can detect the OT by evaluating the temperature difference between the anvil and the penetrating updraft. Why is it useful in operational nowcasting? In general, it denotes places where the thunderstorm’s updraft core is located. Examples of OT detections during Testbed’s nowcast are shown below (squares with temperature difference values):

09.06.2014 1925 UTC Meteosat IR-108BT image + overshooting top detection algorithm. Detections denote quite well places with intense updrafts.

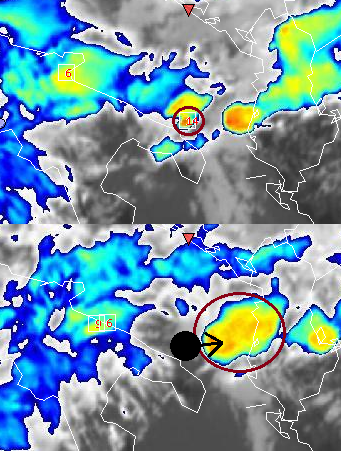

16.09.2014 1300 UTC (top) and 1430 UTC (bottom) Meteosat IR-108BT image + overshooting top detection algorithm. Detection of 14 C denotes a strong updraft of a developing thunderstorm. In the next 90 minutes thunderstorm became intense.

As in previous post we mentioned about lvl 3 issued by TEAM A, we received reports of excessive precipitation and weak tornado that occured near Albanian coast. However placement of this threat was very good, we think that it should deserved lvl 2. Overall, it was good forecast, congratulations to our participants!

In the evening we had an unexpected very intersting presentation from our participant Dean Gill about stormchasing in Europe. Dean shown us videos and pictures from his stormchasing adventures. We saw supercells, hailstorms, waterspouts and numerous beautiful pictures with lightnings, it was really impressive.

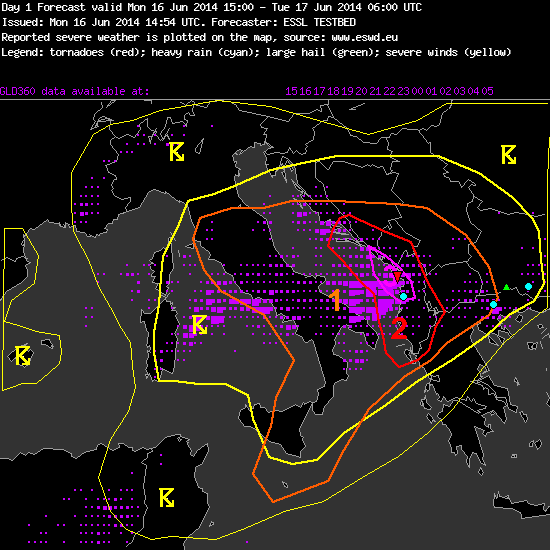

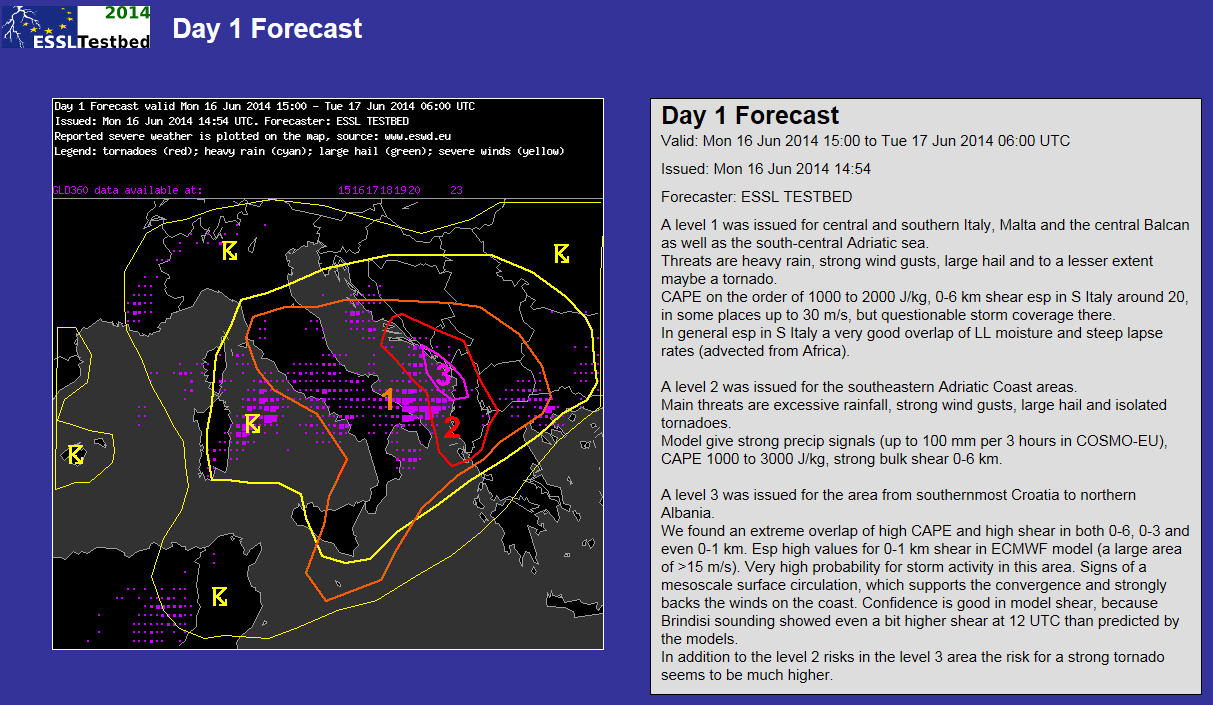

Day 1 forecast of the team in the green room

The situation in the central Mediterranean Sea is quite exceptional for the season. And especially ECMWF was very aggressive in its 0-1 km shear forecast, with more than 15 m/s in a stretch along the coast of Montenegro and Albania. 0-6 km bulk shear reaches 30 m/s in some places in the 00 UTC ECMWF forecast, resulting in this map. Forecasters in the green room discussed if they should stay with level 2 or go for the 3, and finally decided to take the upper, because of the impressive overlay of all ingredients for tornadic supercells in this region overnight. We will see if nature will evolve this solution or another.

Mateusz Taszarek, a PhD student from Poland, this year took the opportunity of an internship at the ESSL Testbed. And one of his tasks is to take care of this blog. So most of the posts here were written by Mateuz. Thank you for that! Alois

ESSL Testbed Blogger 2014: Mateusz Taszarek (looking into the camera and discussing with Thilo Kühne)

This week participants from Germany, USA, Austria, Switzerland, Poland, Netherlands, Romania, Estonia are taking part in ESSL Testbed.

The expert lecture of the day about frontogenesis was presented by Prof. David Schultz from the University of Manchester. This week, also the ESWD quality control manager of ESSL, Thilo Kühne, joins the Testbed as well as Dr. Kathrin Riemann-Campe, ESSL Deputy Director.

Expert lecture in the last day of Testbed’s week 2 was conducted by ESTOFEX forecaster – Tomas Pucik, who presented results of his research on sounding derived parameters and their use in severe weather forecasting.

We had an amazing and interesting week with very interesting setups. We thank our participants for their effort in forecasting severe weather and wish a safe trip.

We are looking foreward for week 3 and more severe weather! 🙂
